Deck-level piped
drainage. Flush finish.

AliDrain sits flush with the deck surface, carrying water away through a piped system below joist level. Falls-managed. Rapid-access gutters. No ponding. No standing water.

Talk to drainage technical → Download datasheet
System data№ 006
Components
8
Outlet types
3
Profile
Flush
Access
Rapid
Falls
Managed
↳ 8 components ● ↳ 3 outlet types ● ↳ Falls-managed drainage ● ↳ Flush installation ● ↳ Rapid access gutters
§ 01 / System diagram
↳ Click a pin — explore the components

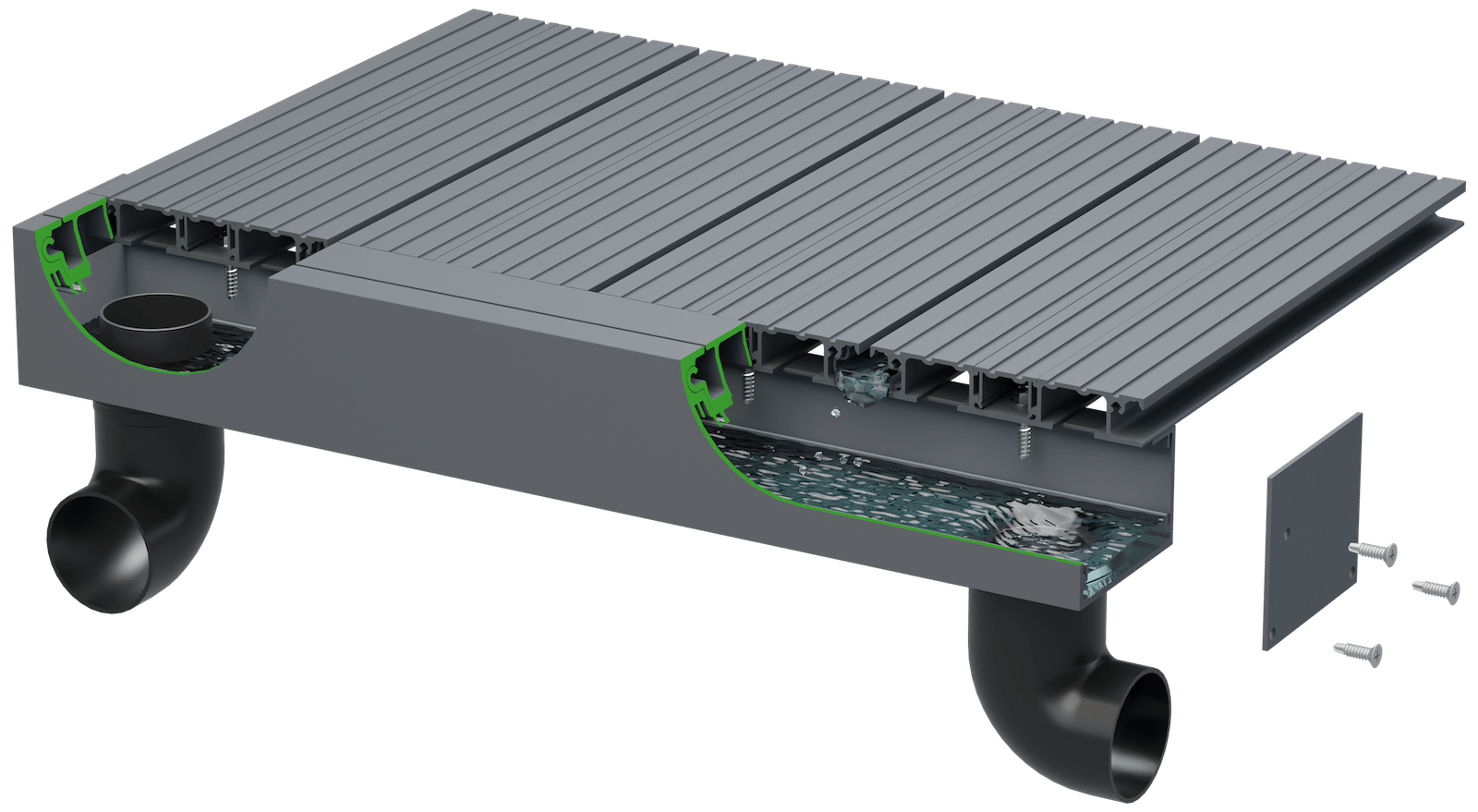

AliDeck drainage system assembly diagram
§ 02 / Benefits

Why deck-level piped.

01

Falls managed

Drainage gradient is built into the gutter system — not dependent on the structural deck fall. Water moves to the outlet regardless of minor structural variation.

02

Flush finish

The gutter profile sits flush with the deck surface. No raised channels, no trip hazards, no visible drainage infrastructure. Clean, continuous deck plane.

03

Rapid access

End caps are removable. Access gutters have lift-out covers. The entire drainage run can be rodded or inspected without lifting the deck surface.

§ 03 / Components

System components.

AD-AG-50

Access gutter

50mm profile. Sits flush with deck surface. Provides rapid drainage and maintenance access.

AD-OC-100

Outlet connector

Connects gutter run to piped drain below deck. Multiple configurations for different structural arrangements.

AD-DLO-50

Deck-level outlet

50mm diameter floor outlet with integrated debris guard. Point drainage for isolated low spots.

AD-PC-75

Piped channel

75mm round pipe routed below joist level. Carries water from gutter to primary drainage system.

AD-CP-50

Corner piece

90° bend connects gutter runs at deck corners. Factory-formed for consistent angle and watertight joints.

AD-EA-50

End cap with access

Removable end cap for rodding and inspection. Quarter-turn removal, no tools needed.

AD-JC-50

Joining coupler

Connects gutter lengths with watertight slip joint. Accommodates thermal movement along the run.

AD-DG-50

Debris guard

Stainless mesh insert for access gutter and outlets. Prevents leaf and debris ingress to the pipe run.

§ 04 / Downloads

Datasheet & technical files.

PDF
AliDrain Deck-Level Piped — System Datasheet
0.9 MB · Updated January 2026
Download →
PDF
Install Guide — AliDrain Deck-Level Piped
2.1 MB · Updated November 2025
Download →
CAD
CAD Profiles — AliDrain System
4.2 MB · DWG + DXF
Download →
NBS
NBS Spec Clause — AliDrain
28 KB · Updated January 2026
Download →
PDF
Component Schedule — All AliDrain Parts
0.4 MB · Updated October 2025
Download →
PDF
Drainage Design Guide
1.8 MB · Updated December 2025
Download →
§ 05 / Projects

Specified on these projects.

image placeholder
City of London · 2024

India House

AliDeck AliDrain
Read the story →
image placeholder
Bristol · 2023

Bristol Student Accommodation

AliDeck AliDrain
Read the story →
image placeholder
Leeds · 2023

Leeds Central Apartments

AliDeck AliDrain
Read the story →

Talk to technical about your drainage spec.

Every drainage spec is different. Tell us your project and we'll work out the right system configuration — falls, outlets, access, and pipe routing — at no charge.

Talk to technical → Download drainage guide
